To be used over new or existing joists for refurbishments or conversions with a new resilient bar ceiling as illustrated or approved by Isomass (on application to technical@isomass.co.uk for our free acoustic detail design service).
Acoustic floor system: direct to joists with a resilient bar ceiling
The Isocheck 32T and 37T acoustic floor systems are designed to reduce impact sound transmission through timber joisted floors. Both systems meet Approved Document E regulations and are suitable for different installation scenarios.
To be used over new or existing joists for refurbishments or conversions with a new resilient bar ceiling as illustrated or approved by Isomass (on application to technical@isomass.co.uk for our free acoustic detail design service).

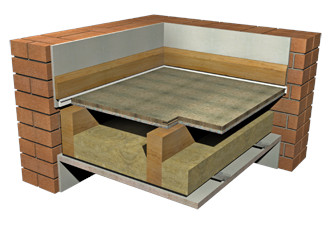

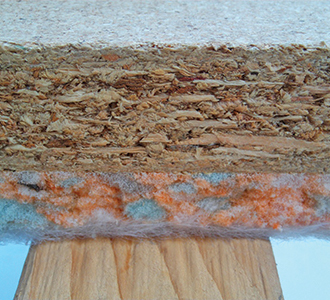

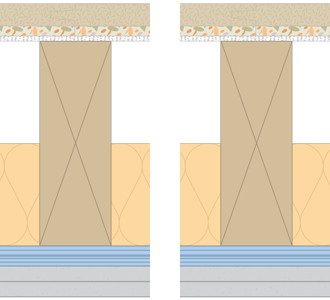

Treated floor with: Isocheck 32T with a resilient bar ceiling
| Overall size: | 2400mm x 600mm x 32mm |
| Resilient layer thickness: | 10mm |
| Resilient layer material: | 6mm reconstituted ACF - (Acoustic chip foam) and 4mm Isofiba |
| Weight: | 23.0kg per sheet |
Isocheck 32T acoustic flooring, supplied by Isomass Ltd. Unit 14 Papworth Business Park, Stirling Way, Papworth Everard, Cambridgeshire CB23 3GY and installed in accordance with manufacturer's instructions / recommendations.
Full installation instructions for Isocheck 32T are available as a pdf to download. Go to the Downloads tab on this page.
Download datasheet
Find Isocheck 32T on NBS Source for detailed specifications and BIM objects.
